D5-300C

Description

D5-300C 5Bay

Exclusive 2+3 RAID Storage

The D5-300C provides 2+3 RAID storage. This means that hard drive1 and hard drive 2 can be configured as RAID 0, RAID 1 or single disk to secure your important data. The remaining drives 3 through 5 work as single, independent drives. This allows you maximum flexibility in utilizing these three drives.

Real SUPERSPEED with USB3.0 Protocol!

D5-300C adopts USB3.0(5Gbps) SUPERSPEED protocol. In RAID 0, with desktop SSHD hard drives, the read/write speed is up to 410MB/s.

USB Type-C interface

D5-300C equipped with brand new USB type-C SUPERSPEED interface and compatible with Mac and Windows computers.

Up to 100TB storage capacity

D5-300C can support five (5) SATA hard drives, is compatible with 20TB 3.5 inch SATA hard drive, and has a total storage capacity up to 100TB. (Note: users need to purchase their own hard drives. These are not included.)

Compatible with various hard drives

D5-300C is compatible with various hard drives, such as 3.5 inch SATA hard drives (including WD Green hard drives, WD Red hard drives, WD Purple hard drives, and Enterprise hard drives), 2.5” SATA hard drives, and 2.5” SATA SSD.

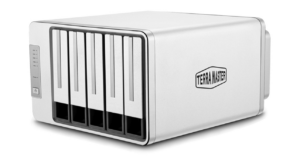

Aluminum Enclosure

D5-300C adopts aluminum enclosure and low-noise fan, which is firm and reliable, of good heat dissipation, and low noise.

Various applications

D5-300C is usable for various data application including video editing, photo backup, research and development, technical document preservation, file backup, music library, financial records, video surveillance, and corporate data storage.

D5-300C has passed multiple certifications, including FCC, CE, UL, GS, and RoHS.

Exclusive worry-free warranty

Brand new replacement for 2 years, quick service in 24 hours!



Storage:
Disk Slot Number 5
Compatible Disk Types 3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
File System:
NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
Maximum Internal Raw Capacity 100TB (20 TB drive x 5) (Capacity will vary along with the RAID type)
RAIDs Supported SINGLE DISK,RAID 0,RAID 1

Hardware RAID √
RAID Manager Software /
RAID Manager Software Language /
RAID Online Expansion /
RAID Migration /
RAID Auto-rebuilding RAID 1

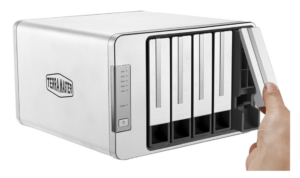

Drive Hot Swap √
HDD Sleep √
HDD S.M.A.R.T. Inspection /
Sector Inspection and Parity Check /
SSC Cache /
Daisy Chain /
HDD NCQ Technology /
Alert Notice /
Event Log /

External Ports:
USB USB3.1 Type-C gen1 x 1
Thunderbolt /
DP Interface /
Power Socket DC IN 12V
Reading/writing Speed (max.)
Reading Speed (max.) Read：410MB/s (2 SSHD RAID0 mode)
Writing Speed (max.) Write：400MB/s (2 SSHD RAID0 mode)

Appearance:
Size (H*W*D) 227 x 225 x 136 mm
Packaging Size (H*W*D) 300 x 275 x 186 mm
Weight net weight: 2.1 Kg Gross Weight: 3.5Kg
Others
System fan 80 mm x 80 mm x25mm (x 2)
Fan mode Smart
Noise Level 19.8dB(A)
Power Supply
Power Supply 90W
AC Input Voltage 100V to 240V AC
Current Frequency 50/60 HZ, Single Phase
Power Consumption 45.6W(Access)

Environment Temperature:
Working Temperature 5°C ~ 40°C (40°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Supported OS Windows OS、Mac OS
Warranty 2 years
Certificate CE, FCC, CCC, KC
Environment RoHS compliance
Package Contents:
Host unit (x1)
Power cord (x1)
USB Cable A to Type-C 1m(10Gb) (x1)
Quick Installation Guide (x1)
Power adapter (x1)
Screws (several)
Limited Warranty Note x 1
